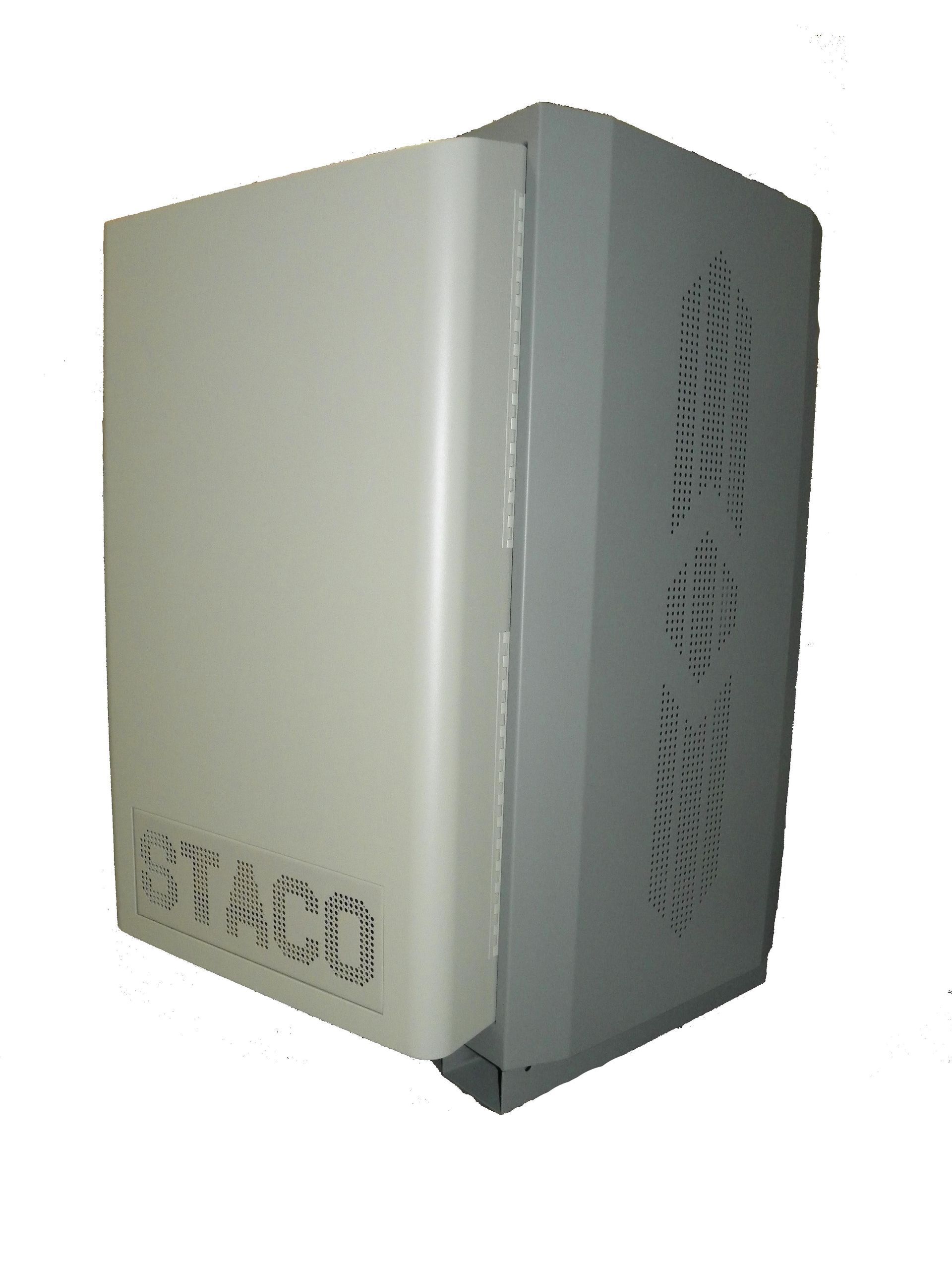

STACO UniStar SCLI 924
Protects unwanted power outages and electrical disturbances. It continually maintains efficient AC Emergency Power to operate all emergency lighting fixtures at “full-light” output, providing superior dependability and security to commercial/industrial environments in a small footprint.
Contact Us about STACO UniStar SCLI 924
- Monitoring software always on guard.
- Display monitor keeps you in control 24/7.
- Dependable PWM technology for unsurpassed reliability.
- Economical for the lowest overall cost for your light safety, with an Energy Star Rating.
- Temperature compensating technology that controls batteries for the longer battery life.
- Sealed maintenance free batteries.
- Full light output for 90 minutes.
- Self-diagnostics for a safe and secure lighted environment.
- Pure sine wave output for all types of lamps.
- Backup solutions for multiple applications such as:
- indoor and outdoor emergency lighting
- exits
- cash registers
- computers
- strategic electronics
- and more!
- 10 Year pro-rated battery warranty.
- 5 Year main transformer warranty.
- Meets federal, state and local codes:
- UL924, NFPA 101, NFPA 70, NEC and OSHA.
- Cities of Chicago and New York Approved.
- Complies with the Buy American Act.
Product Snapshot
| Model “S” Power Levels (Watts) | 350, 525, 700, 750, 875, 1050, 1400, 2000 |
| Model “E” Power Levels (kW) | 2.4, 2.6, 3.0, 3.4, 3.8, 4.2 |
| Model “EX” Power Levels (kW) | 4.7, 5.25, 7.0, 8.0, 10.0, 12.0, 14.0, 18.0, 21.0 |
Technical Specs
| Connections | Hardwire |
| Crest Factor | 2:5:1 typical |
| Surge Protection | Protects itself and the load against surges as defined in ANSI/EEE C62.45 category A and B |
| Efficiency | ≥92% at 100% linear load |
| Audible Noise | <45dB measured on Response Curve “A” |
| Operating Temperature | 0º to 40ºC (32º to 104ºF) |
| Storage Temperature | -20º to 60ºC (-4º to 140ºF) |
| Humidity | 5 – 95%, Non-condensing |
| Monitoring | LED Displays Alarms and Diagnostics |
Input:
| Input Voltage | Refer to Voltage Selection Table in pdf |
| Input Voltage Range | +10% -15% |
| Input Protection | Input Main Circuit Breaker |
Output:
| Output Voltage | 120, 277, 120/240 or 120/277 VAC |
| Output Voltage Regulation | ±2% for all loads and battery discharge mode |
| Output Frequency Range | 60 Hz, ±1% |
| Output Wave Form | Sine-wave <5% @ 100% linear load |
| Output Protection | Output Main Circuit Breaker |
Battery:
| Battery | Sealed maintenance-free (AGM) lead calcium |
| Recharge Current | Conforms to UL924 standards |
| External Battery | Provision for hardware connection of external battery cabinets or DC source |
