ABB Mini Inverter Series

ABB Mini Inverter Series

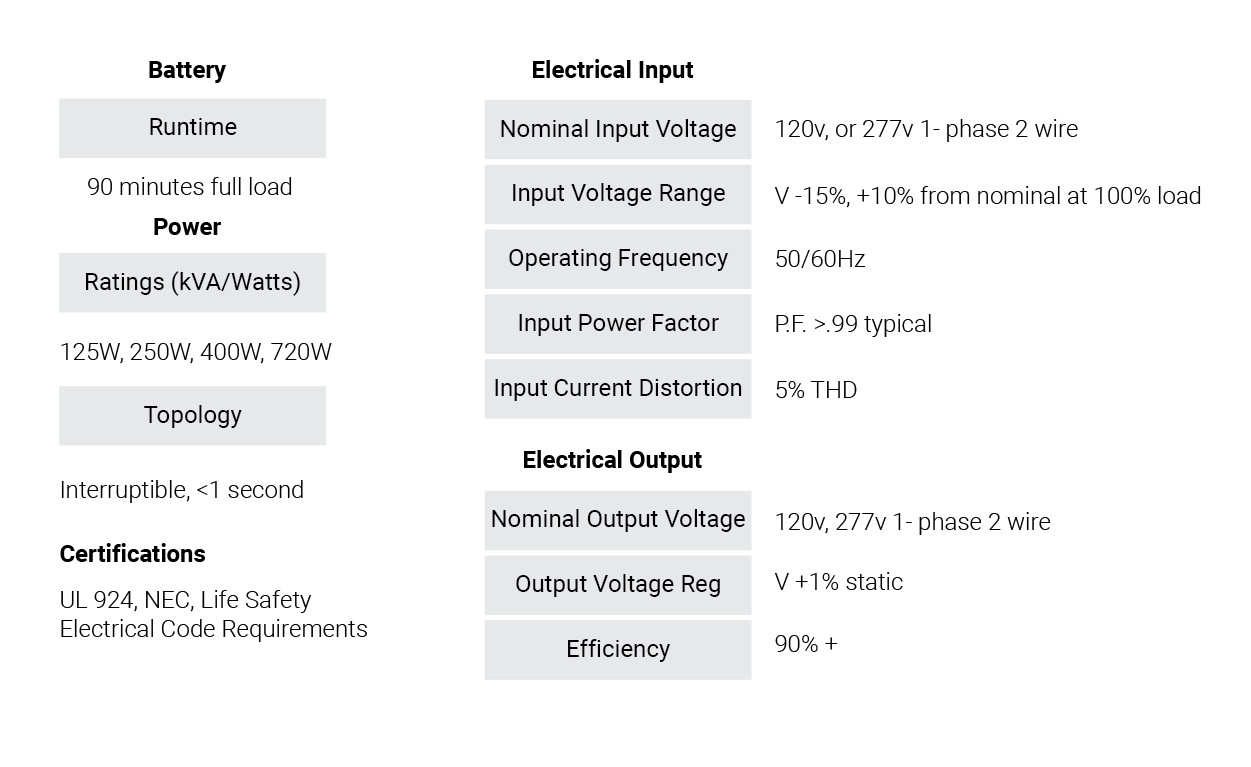

Interruptible Unit Equipment

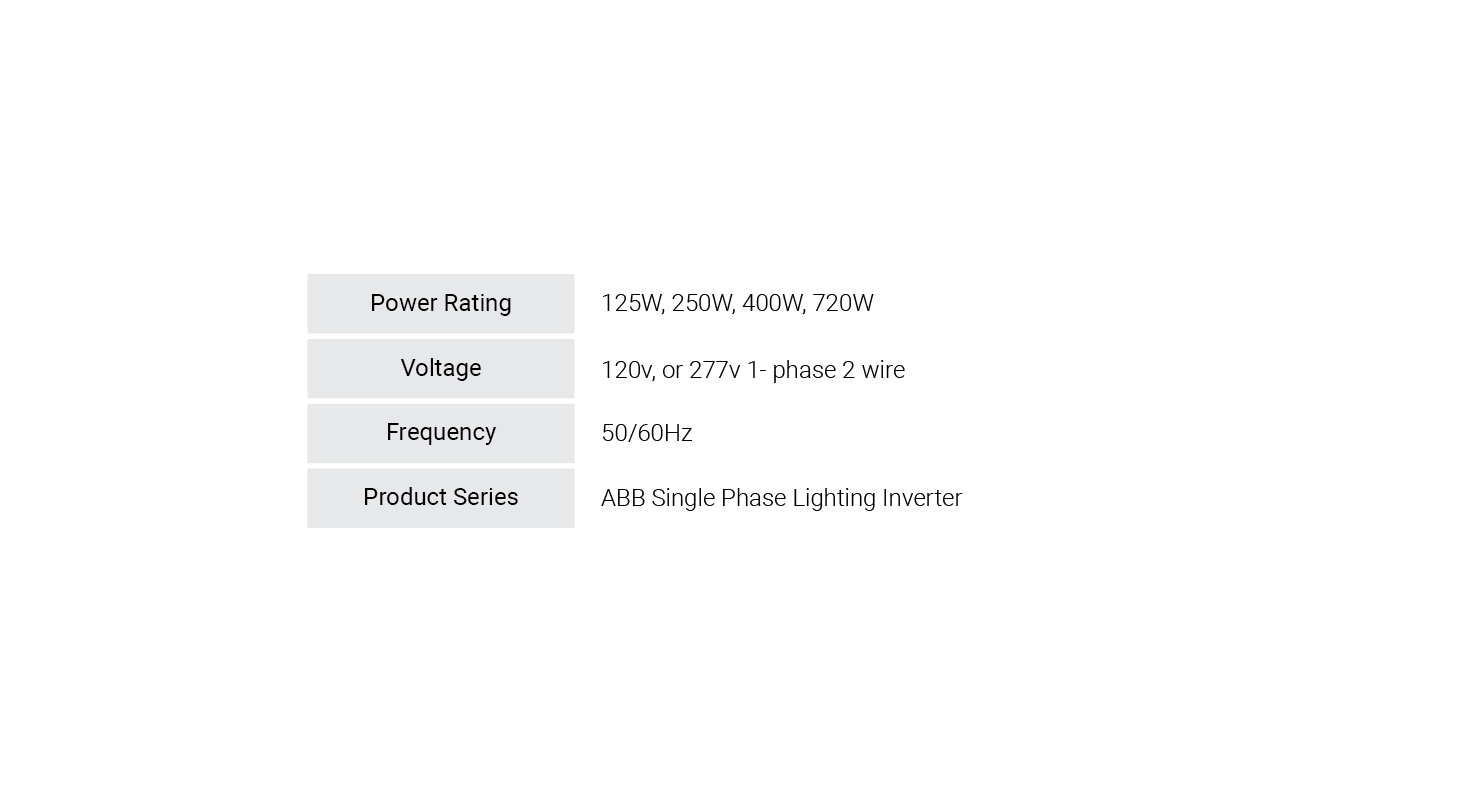

125 W, 250 W, 400 W, or 720 W

Controls

Standard with a non-audible self diagnostic/charger is fully self-contained, fully automatic microcontroller based system
Optional audible auto diagnostic available
Standard lighting control override for 0-10V dimming systems

ABB Mini Inverter features and benefits

Electronics

High-efficiency pure sine wave inverter at 250W capacity or higher
Temperature compensated charger
Replaceable output fuse protection
Low battery voltage disconnect
Unit comes standard with electronic lockout and brownout circuits

Load Shedding

During a power outage the emergency fixture is dimmed to 25% or 45% brightness output. Reducing wattage draw from the fixture will allow for more fixture to be connected to the Mini Inverter.
Maximum 20 Emergency fixtures can be daisy chained per EMIU 250
In standby mode, the maximum normally-on load that can be connected to EMIU-250-LD is 960 watts

Sealed Maintenance-Free Battery

12V oversized valve regulated lead-calcium (VRLA) battery
Provides 90 minutes of emergency operation

Nexus® Option

Units equipped with Nexus® self-testing monitoring system circuitry shall self test, in accordance with NFPA101, Life Safety Code minimum 30 seconds every 30 days, 30 minutes every six months and 90 minutes annually as well as keep a history of all testing logs, plus feature a real-time diagnoses, as well as, be able to locate exact fixture location while notifying service personnel to the status of the fixture via email notification. Nexus® system interface with an improved minimum load lost detection of 10%

Single Source Lighting Inverter Provider

Expert assistance from Technical Consultants assist in the selection process of your next Inverter System. Our team is available for Technical Review of specifications, Sizing assistance, Voltage selection, and Runtime Calculations.
