Uninterruptible emergency lighting, 1PH, inverter system 500VA – 2000VA
Features
- 98% efficient at full load
- PWM/MOSFET technology
- Self-testing/self-diagnostic
- User programmable with password protection
- Standard input circuit breaker
- Standard output circuit breaker
- Micro-processor controlled
- Floor or wall mountable
- Field upgradeable (500VA steps)
- 90 min. standard run time
- Electronic and magnetic ballast compatible
- Automatic event, test and alarm log
- LCD display
- Small footprint (stackable cabinets)
- Maintenance-free standard batteries
- Forced air cooling during emergency mode only
UL listed to UL 924. Meets NFPA101, NFPA70, NFPA 110, OSHA, UBC, SBCCI. N.Y City approved.
Contact Us about ABB Compact – 500VA – 2000VA
Inverter
Using MOSFET/PWM technology the inverter converts the DC voltage supplied by the batteries to AC voltage of a precise stabilized amplitude and frequency, suitable for most sophisticated electrical equipment. True sinusoidal output waveform with very low distortion (less than 3% for linear loads). Overload capability of up to 150% for 12 line cycles.
Charger
Fully automatic, temperature compensated, microprocessor controlled charger recharges fully discharged batteries in maximum 24 hours at nominal AC input voltage. AC input current limiting and over-voltage protection included.
Battery
System is provided with 10 year, maintenance free, sealed valve regulated lead calcium batteries. 90 min. standard discharge time at full load under normal operating temperature. Low voltage disconnect protection included. No special ventilation required.
Self-diagnostic
Automatic self-test consists of a 5-minute monthly and 90-minute annual function. The front-mounted control panel includes 5 LED indicators, a 2-line 20-character LCD display, a keypad to control and monitor the internal operation of the system. This allows the operator to easily “watch” system functions as they occur and check on virtually any aspect of the system’s operation. Self-diagnostic function monitors, controls, generates alarms and memorizes events.
Alarms
High/low battery charger voltage, high/low AC input voltage, near low battery, low battery, load reduction fault, output overload, high ambient temperature, inverter fault, output fault, optional output circuit breaker trip.

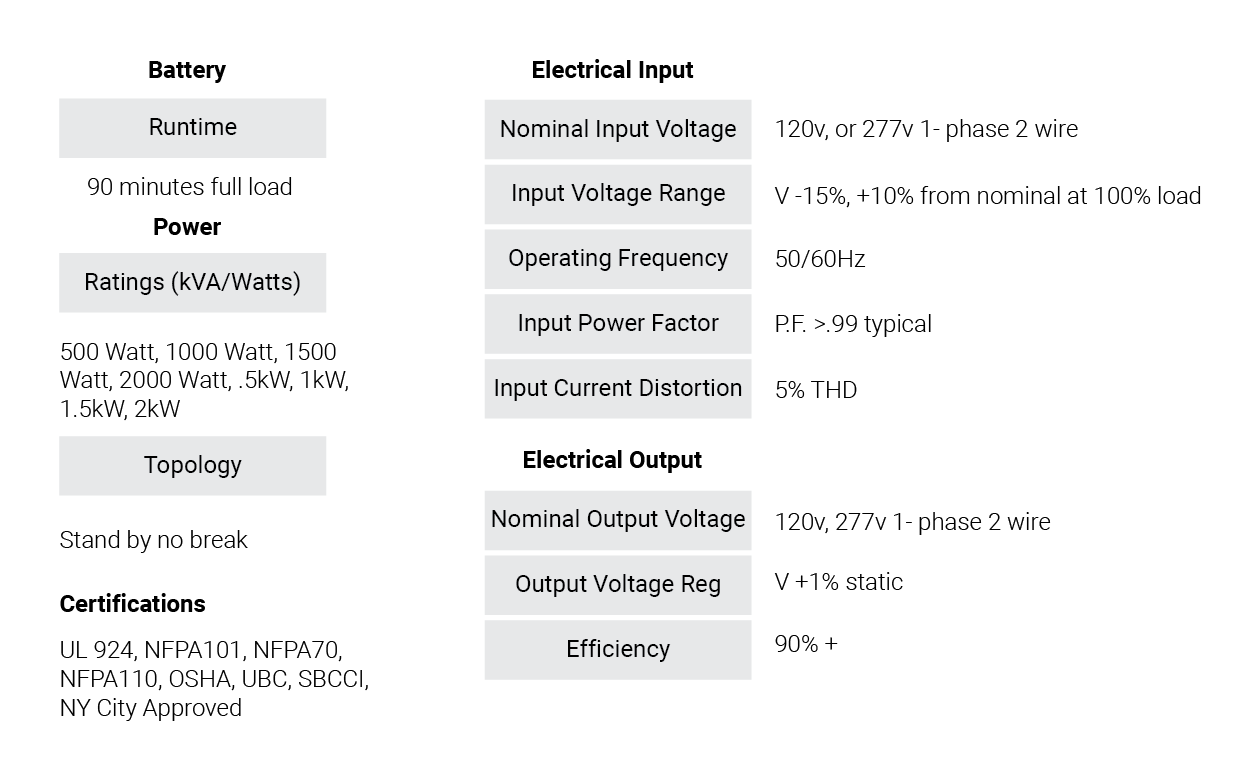

Power
| Ratings (kVA/Watts) | 500 Watt, 1000 Watt, 1500 Watt, 2000 Watt, .5kW, 1kW, 1.5kW, 2kW |
| Topology | Stand by no break |
Electrical Input
| Nominal Input Voltage | 120v, or 277v 1- phase 2 wire |
| Input Voltage Range | V -15%, +10% from nominal at 100% load |
| Operating Frequency | 50/60Hz |
| Input Power Factor | P.F. >.99 typical |
| Input Current Distortion | 5% THD |
Electrical Output
| Nominal Output Voltage: | 120v, 277v 1- phase 2 wire |
| Output Voltage Reg | V +1% static |
| Efficiency | 90% + |
Battery
| Runtime | 90 minutes full load |
Certifications
| UL 924, NFPA101, NFPA70, NFPA110, OSHA, UBC, SBCCI, NY City Approved |

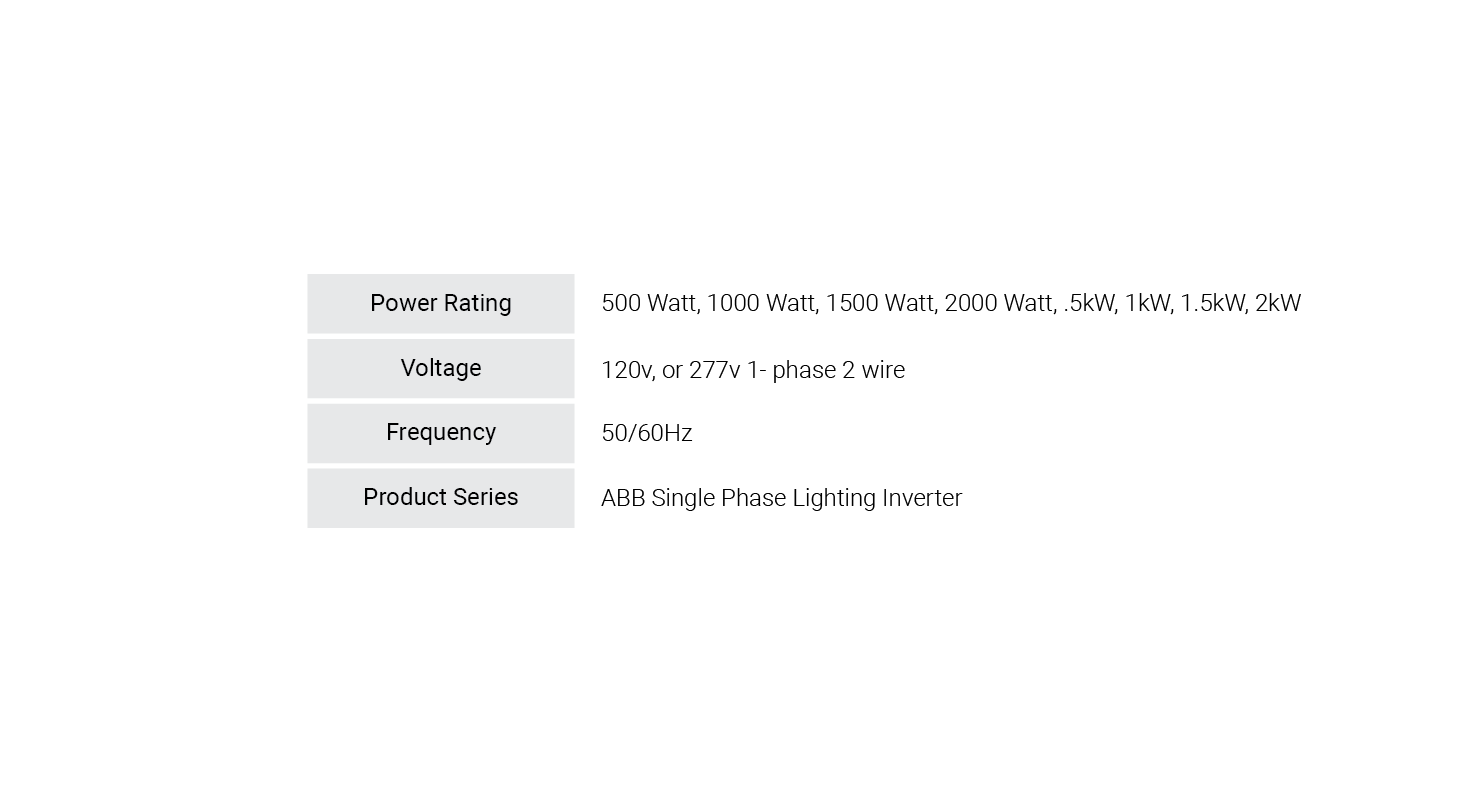

| Power Rating | 500 Watt, 1000 Watt, 1500 Watt, 2000 Watt, .5kW, 1kW, 1.5kW, 2kW |
| Voltage | 120v, or 277v 1- phase 2 wire |
| Frequency | 50/60Hz |
| Product Series | ABB Single Phase Lighting Inverter |
