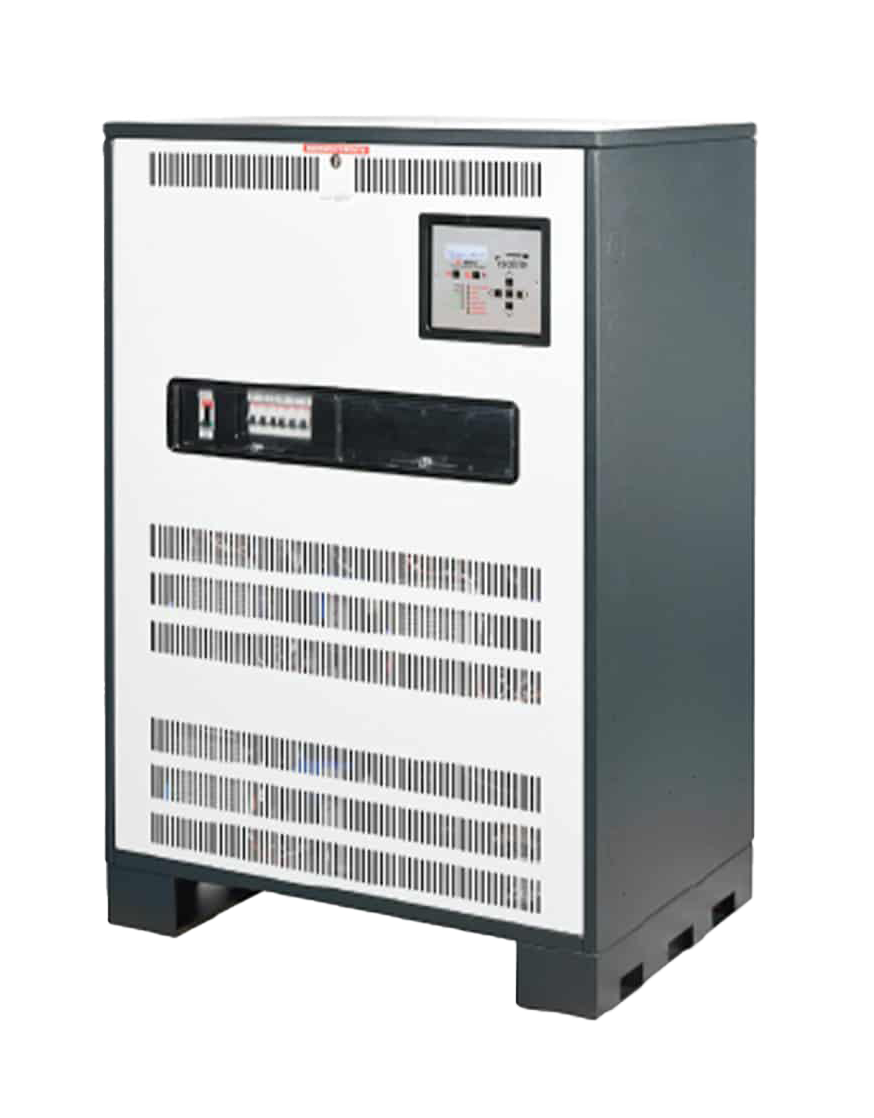

Isolite E3MAC-3P

3000 — 18,000 VA

Three Phase Modular AC Inverter

Isolite E3MAC-3P

3000 to 18,000 VA

The Isolite E3MAC3P is a 3,000 – 18,000 VA three-phase modular AC inverter. It has a programable and password-protected user interface, allowing for optional web monitoring. It is 98% effective for minimal BTU losses and has a PWM Inverter that provides pure sine wave output with less than 3% THD. The programmable transfer time feature can be changed between standard and fast transfer times for better load and site compatibility.


The crest factor has >4 overload protection for demanding high in-rush loads. The UL is listed for a 90-minute run-time and is compatible with all light loads, including HID. It has a variable time delay, three-phase output, and a startup diagnostic that checks to see if it was correctly installed.

Standard Features

  • Features

    • Optional Web-based Monitoring Platform – easily view, interact with, download and manage records as needed on any PC or mobile device
    • Programmable and password protected user interface
    • 98% efficient for minimal BTU losses
    • PWM Inverter provides pure sine wave output with less than 3% THD
    • Crest factor >4 overload protection for demanding high in-rush loads
    • Programmable transfer time – select between standard and fast transfer times
for load and site compatibility
    • UL listed 90 minute run-time
    • Compatible with all lighting loads, including HID
    • Variable time delay
    • Battery recharges in less than 24 hours
    • Three phase output
    • Start-up diagnostics checks for proper installation

Power Rating: 3000-18,000 VA

Voltage: 120V/208V, 277V/480V

Product Series: E3MAC

Battery

Battery: Front access VRLA batteries with 10-Year pro-rated warranty


Temperature Rating

From 68°F to 86°F


Environment (Electronics)

Operating Temperature: 20C° to 30C° (68oF to 86oF)

Storage Temperature: Electronics - 20C° to 70C° (68oF to 158oF)

Relative Humidity: <95 % (non-condensing)


Safety Standards

UL 924, OSHPD Seismic Certified (with Z4 option), New York City Approved, Calendar Number 51575, NFPA 101 Life Safety Code, NFPA 70-NEC, OSHA, NEMA Type 1 enclosure

Download our brochure to learn more.

Related Products

Can't find what you are looking for? We're here to help. Chat with a representative instantly or call 888.501.1887.

ABB Three Phase 3FTC

4.8 kVA — 50 kVA

View Product

FirstLine PLT 924

9 — 54 kW

View Product

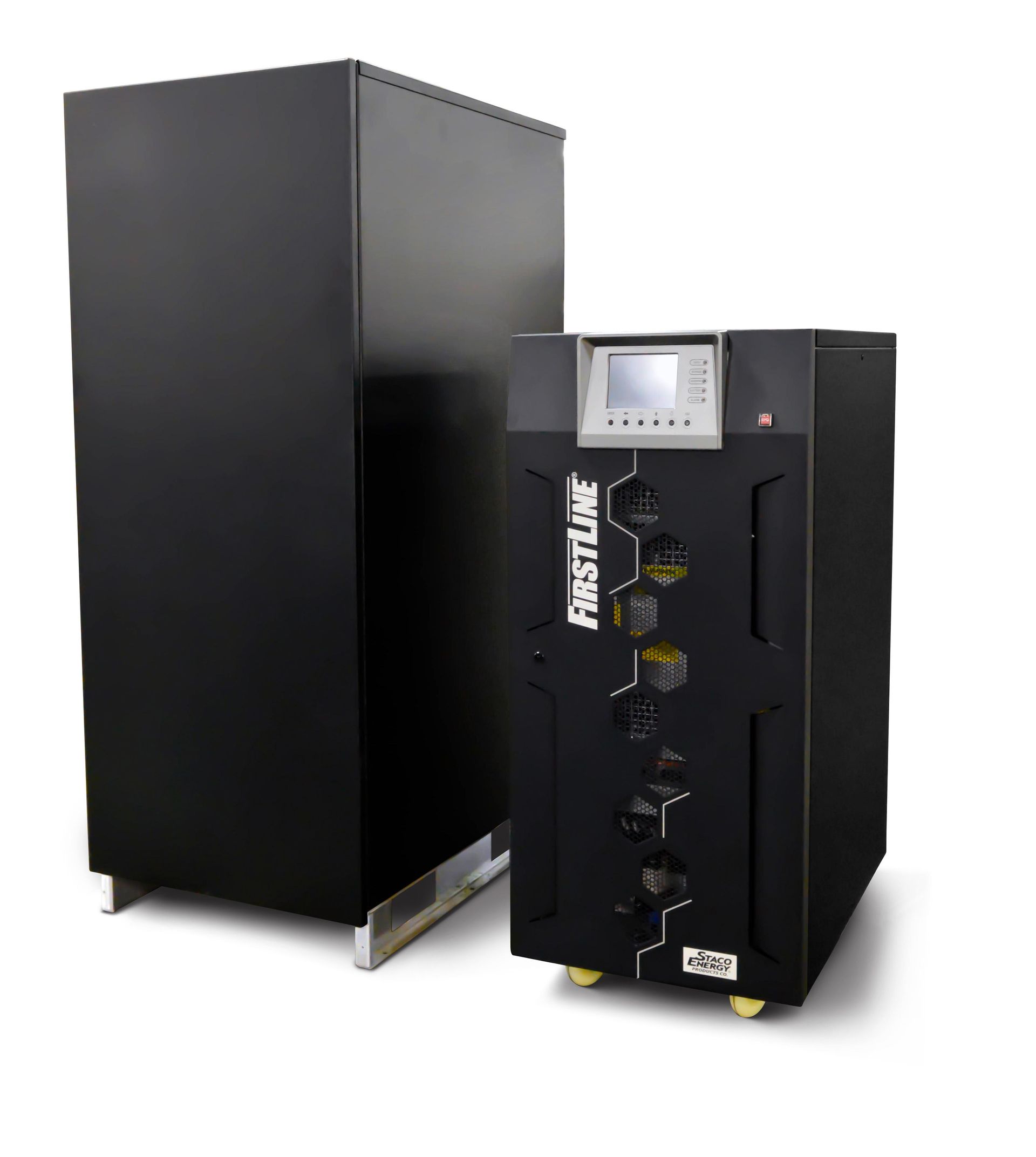

FirstLine PL 924
