FirstLine PLT 924 Central Battery Emergency System

FirstLine® PLT 924 Emergency Lighting System (ELS) delivers high performance, tailored to meet the demands of emergency lighting applications. With a cost-effective reliable design, the FirstLine® PLT 924 helps to ensure personnel safety, during an outage condition.

Contact Us about FirstLine PLT 924

    The FirstLine® PLT 924 central battery emergency system offers more security and versatility to meet illumination requirements, and is the perfect complement for all lighting applications. Our inverter technology effectively maintains critical equipment with extended
    brownout protection, tight voltage regulation, and power conditioning. Tight voltage regulation assures that facility egress lumens are maintained 100% at emergency lighting fixtures, in all modes of operation, and also extends
    ballast, LED driver, and lamp life.

    FirstLine® PLT 924 features unparalleled quality and reliability, with constant conditioned power to virtually any lighting type. The Staco optional Power Distribution Unit (PDU) makes for a well coordinated circuit distribution system.

    Staco FirstLine PLT 924 Lighting Inverter User Manual.pdf

    Staco FirstLine PLT 924 OUST Lighting Inverter Brochure.pdf

    Staco FirstLine PLT OUST 9-18kW Lighting Inverter Drawing.pdf

    Staco FirstLine PLT OUST 27-36kW Lighting Inverter Drawing.pdf

    Staco FirstLine PLT OUST 45-54kW Lighting Inverter Drawing.pdf

    Staco FirstLine PLT924 Lighting Inverter Batteries Warranty Statement.pdf

    Staco FirstLine PLT924 Lighting Inverter Warranty Statement.pdf

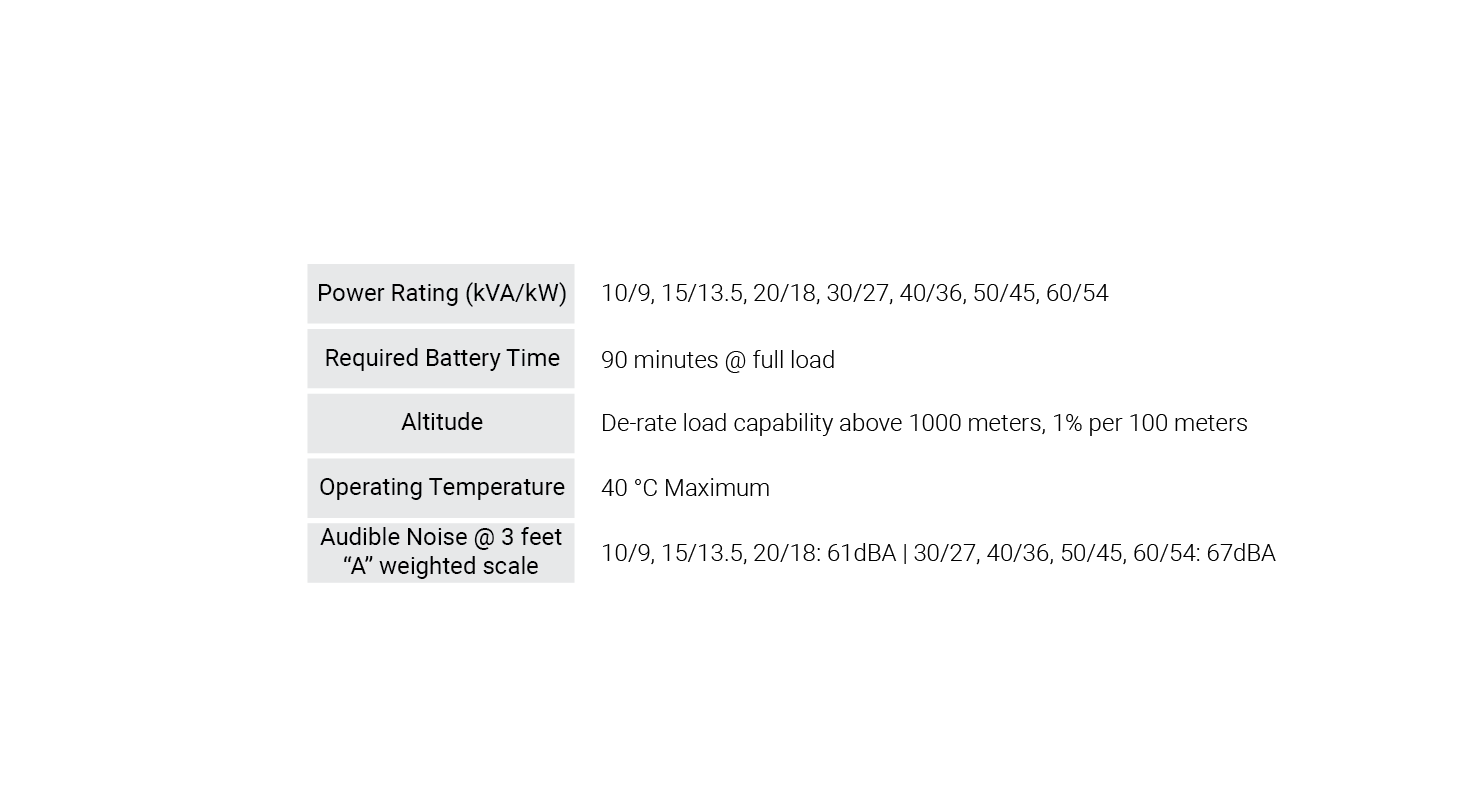

    Product Snapshot
    Power Rating (kVA/kW)10/9, 15/13.5, 20/18, 30/27, 40/36, 50/45, 60/54
    Required Battery Time90 minutes @ full load
    AltitudeDe-rate load capability above 1000 meters, 1% per 100 meters
    Operating Temperature40 °C Maximum
    Audible Noise @ 3 feet
    “A” weighted scale
    10/9, 15/13.5, 20/18: 61dBA | 30/27, 40/36, 50/45, 60/54: 67dBA

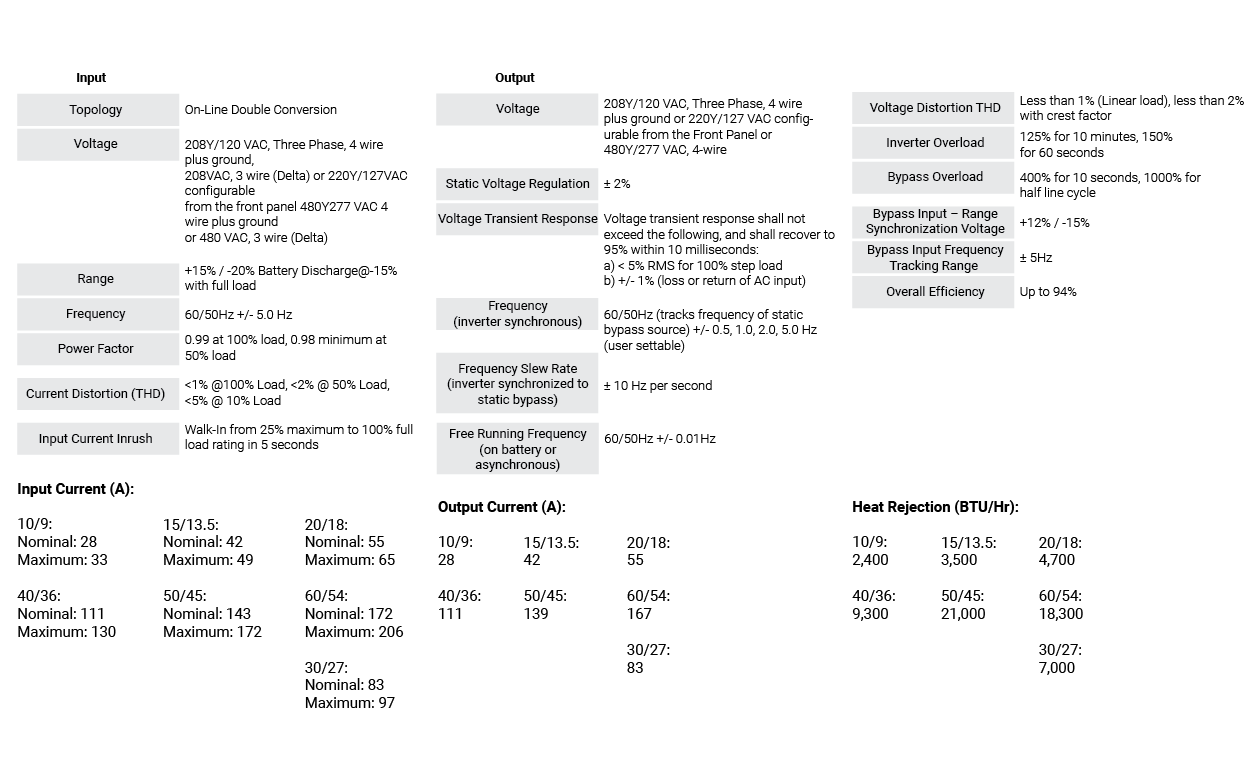

    Technical Specs

    Input:

    TopologyOn-Line Double Conversion
    Voltage 208Y/120 VAC, Three Phase, 4 wire plus ground,
    208VAC, 3 wire (Delta) or 220Y/127VAC configurable
    from the front panel 480Y277 VAC 4 wire plus ground
    or 480 VAC, 3 wire (Delta)
    Range +15% / -20% Battery Discharge@-15% with full load
    Frequency 60/50Hz +/- 5.0 Hz
    Power Factor0.99 at 100% load, 0.98 minimum at 50% load
    Current Distortion (THD)<1% @100% Load, <2% @ 50% Load, <5% @ 10% Load
    Input Current InrushWalk-In from 25% maximum to 100% full load rating in 5 seconds

    Input Current (A):

    10/9:
    Nominal: 28
    Maximum: 33

    15/13.5:
    Nominal: 42
    Maximum: 49

    20/18:
    Nominal: 55
    Maximum: 65

    30/27:
    Nominal: 83
    Maximum: 97

    40/36:
    Nominal: 111
    Maximum: 130

    50/45:
    Nominal: 143
    Maximum: 172

    60/54:
    Nominal: 172
    Maximum: 206

    Output:

    Voltage208Y/120 VAC, Three Phase, 4 wire plus ground or 220Y/127 VAC configurable from the Front Panel or 480Y/277 VAC, 4-wire
    Static Voltage Regulation± 2%
    Voltage Transient ResponseVoltage transient response shall not exceed the following, and shall recover to 95% within 10 milliseconds:
    a) < 5% RMS for 100% step load
    b) +/- 1% (loss or return of AC input)
    Frequency
    (inverter synchronous)
    60/50Hz (tracks frequency of static bypass source) +/- 0.5, 1.0, 2.0, 5.0 Hz (user settable)
    Frequency Slew Rate (inverter
    synchronized to static bypass)
    ± 10 Hz per second
    Free Running Frequency
    (on battery or asynchronous)
    60/50Hz +/- 0.01Hz
    Voltage Distortion THDLess than 1% (Linear load), less than 2% with crest factor
    Inverter Overload125% for 10 minutes, 150% for 60 seconds
    Bypass Overload400% for 10 seconds, 1000% for half line cycle
    Bypass Input – Range
    Synchronization Voltage
    +12% / -15%
    Bypass Input Frequency
    Tracking Range
    ± 5Hz
    Overall EfficiencyUp to 94%

    Output Current (A):

    10/9:
    28

    15/13.5:
    42

    20/18:
    55

    30/27:
    83

    40/36:
    111

    50/45:
    139

    60/54:
    167

    Heat Rejection (BTU/Hr):

    10/9:
    2,400

    40/36:
    9,300

    15/13.5:
    3,500

    50/45:
    21,000

    20/18:
    4,700

    60/54:
    18,300

    30/27:
    7,000
