FirstLine PL 924

FirstLine® PL 924 Emergency Lighting System (ELS) delivers high
performance, tailored to meet the demands of emergency lighting
applications. With a cost-effective reliable design, the FirstLine® PL 924 helps to ensure personnel safety, during an outage condition.

The FirstLine® PL 924 offers more security and versatility to meet illumination requirements, and is the perfect complement for all lighting applications. Our inverter technology effectively
maintains critical equipment with extended brownout protection,
tight voltage regulation, and power conditioning. Tight voltage
regulation assures that facility egress lumens are maintained 100% at emergency lighting fixtures, in all modes of operation, and also extends ballast, LED driver, and lamp life.

FirstLine® PL 924 features unparalleled quality and reliability, with constant conditioned power to virtually any lighting type. The
Staco optional Power Distribution Unit (PDU) makes for a well
coordinated circuit distribution system.

Staco FirstLine PL 924 Lighting Inverter Extended Battery Cabinet User Manual.pdf

Staco FirstLine PL 924 Lighting Inverter User Manual.pdf

Staco FirstLine PL924 Lighting Inverter Batteries Warranty Statement.pdf

Staco FirstLine PL924 Lighting Inverter Warranty Statement.pdf

Staco FirstLine PL 924 OUST Lighting Inverter Brochure.pdf

Staco FirstLine PL OUST Lighting Inverter Drawing.pdf

Contact Us about FirstLine PL 924

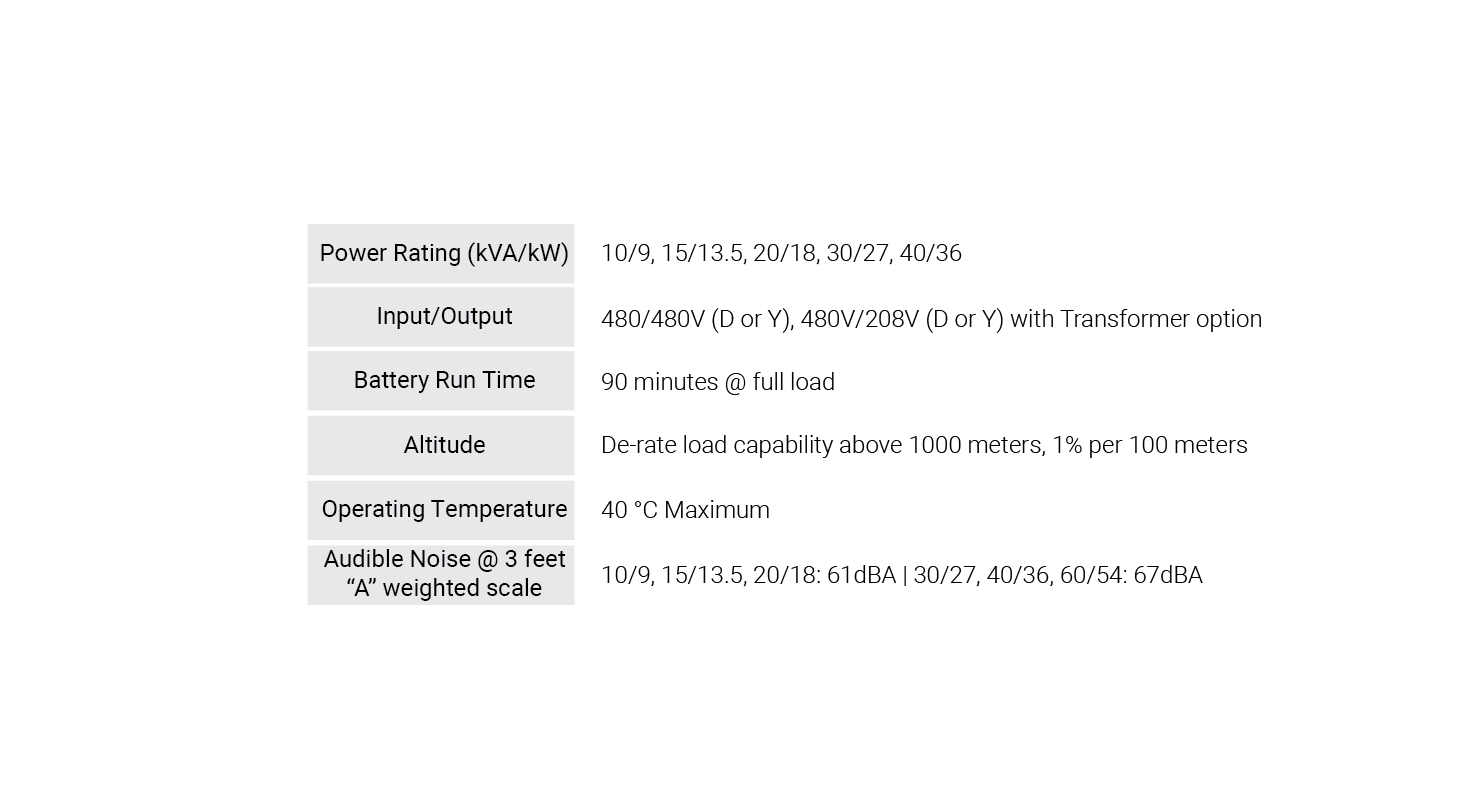

    Product Snapshot
    Power Rating (kVA/kW)10/9, 15/13.5, 20/18, 30/27, 40/36
    Input/Output480/480V (D or Y), 480V/208V (D or Y) with Transformer option
    Battery Run Time90 minutes @ full load
    AltitudeDe-rate load capability above 1000 meters, 1% per 100 meters
    Operating Temperature40 °C Maximum
    Audible Noise @ 3 feet
    “A” weighted scale
    10/9, 15/13.5, 20/18: 61dBA | 30/27, 40/36: 67dBA

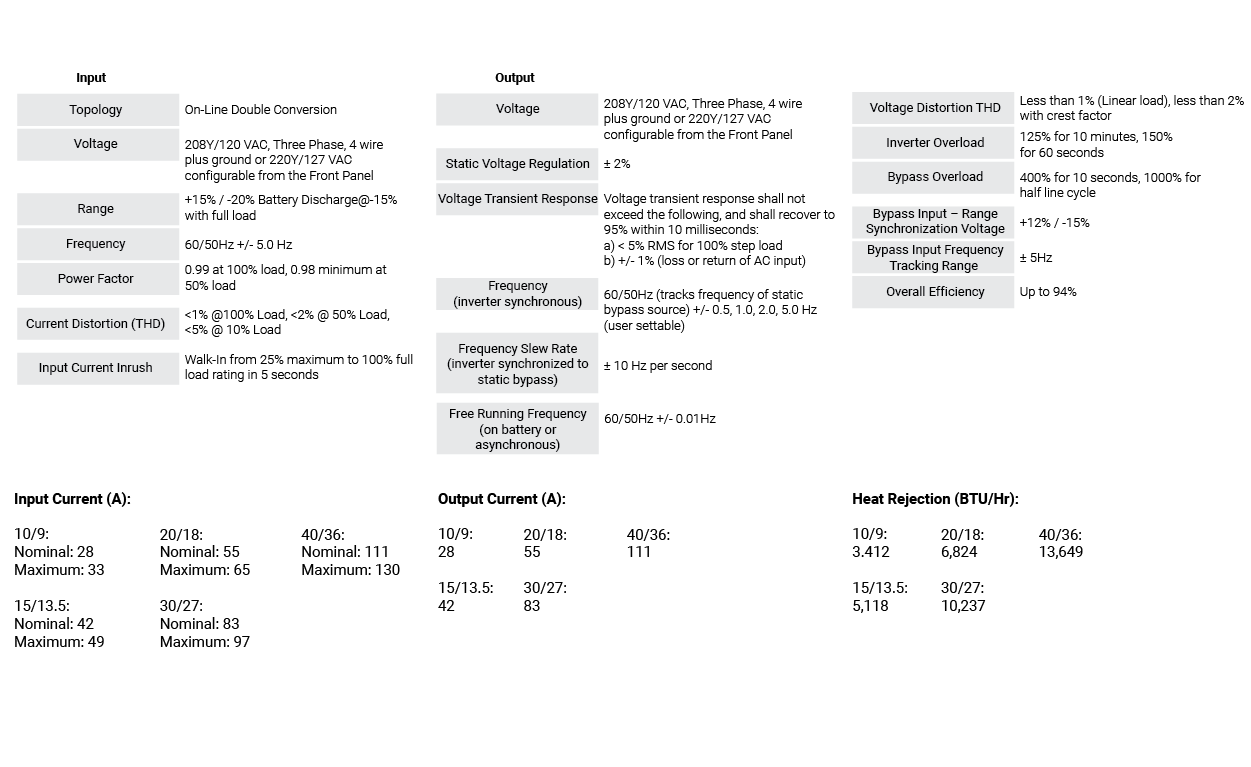

    Technical Specs

    Input:

    TopologyOn-Line Double Conversion
    Voltage 208Y/120 VAC, Three Phase, 4 wire plus ground or
    220Y/127 VAC configurable from the Front Panel
    Range +15% / -20% Battery Discharge@-15% with full load
    Frequency 60/50Hz +/- 5.0 Hz
    Power Factor0.99 at 100% load, 0.98 minimum at 50% load
    Current Distortion (THD)<1% @100% Load, <2% @ 50% Load, <5% @ 10% Load
    Input Current InrushWalk-In from 25% maximum to 100% full load rating in 5 seconds

    Input Current (A):

    10/9:
    Nominal: 28
    Maximum: 33

    15/13.5:
    Nominal: 42
    Maximum: 49

    20/18:
    Nominal: 55
    Maximum: 65

    30/27:
    Nominal: 83
    Maximum: 97

    40/36:
    Nominal: 111
    Maximum: 130

    Output:

    Voltage208Y/120 VAC, Three Phase, 4 wire plus ground or 220Y/127 VAC configurable from the Front Panel
    Static Voltage Regulation± 2%
    Voltage Transient ResponseVoltage transient response shall not exceed the following, and shall recover to 95% within 10 milliseconds:
    a) < 5% RMS for 100% step load
    b) +/- 1% (loss or return of AC input)
    Frequency
    (inverter synchronous)
    60/50Hz (tracks frequency of static bypass source) +/- 0.5, 1.0, 2.0, 5.0 Hz (user settable)
    Frequency Slew Rate (inverter
    synchronized to static bypass)
    ± 10 Hz per second
    Free Running Frequency
    (on battery or asynchronous)
    60/50Hz +/- 0.01Hz
    Voltage Distortion THDLess than 1% (Linear load), less than 2% with crest factor
    Inverter Overload125% for 10 minutes, 150% for 60 seconds
    Bypass Overload400% for 10 seconds, 1000% for half line cycle
    Bypass Input – Range
    Synchronization Voltage
    +12% / -15%
    Bypass Input Frequency
    Tracking Range
    ± 5Hz
    Overall EfficiencyUp to 94%

    Output Current (A):

    10/9:
    28

    15/13.5:
    42

    20/18:
    55

    30/27:
    83

    40/36:
    111

    Heat Rejection (BTU/Hr):

    10/9:
    3.412

    15/13.5:
    5,118

    20/18:
    6,824

    30/27:
    10,237

    40/36:
    13,649
