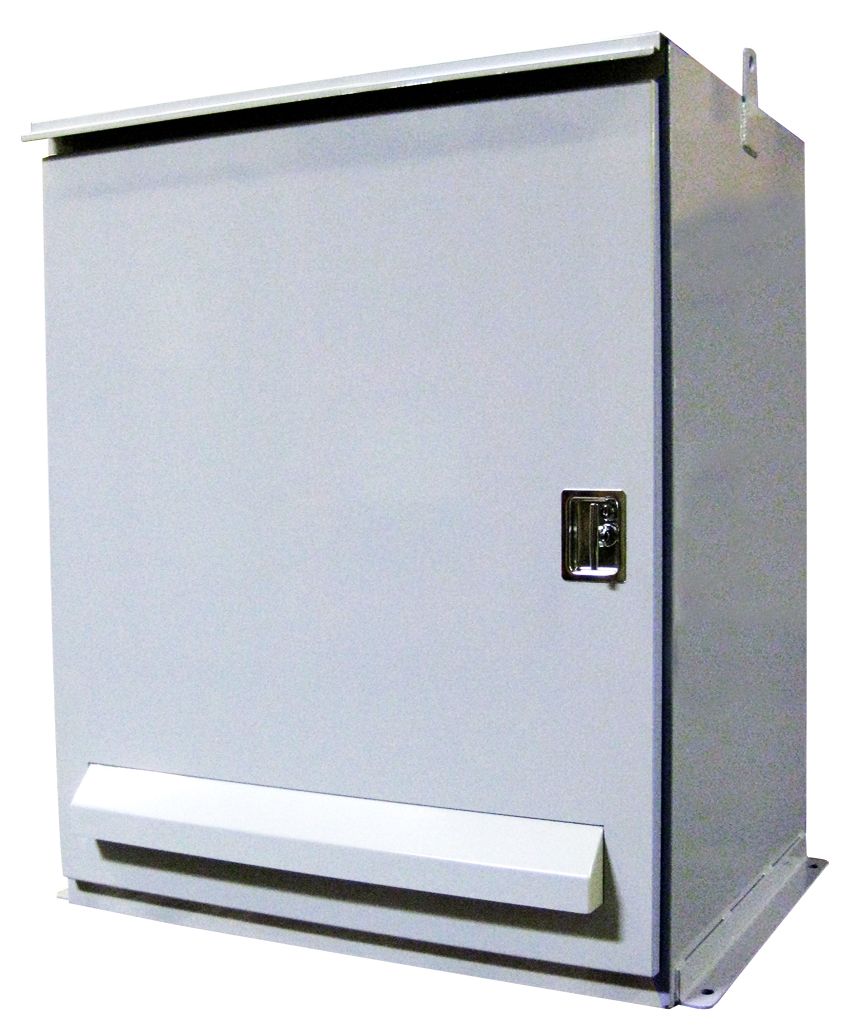

eternalight 3 outdoor

Eternalight 3 Three Phase

Defends your environment against unwanted power outage and electrical disturbances by providing:

Contact Us about DSPM Eternalight 3 Outdoor

    • DSPM Watchdog software for monitoring and notifications
    • Helpful display monitor comprehensive data
    • Dependable DSP/PWM technology for unsurpassed reliability.
    • Energy Star Rating – low cost of ownership
    • Giga-touch battery charging and float voltage for enhanced battery life
    • NFLA 101 90 minute battery
    • Self-diagnostics for remote notification of alarms, temp
    • Sinewave voltage
    • Patented ECM DSPM module
    • Backup solutions for industries:
      • emergency lighting, exits, casinos, events,
      • pos registers, servers
    • 10 Year comprehensive pro-rated battery warranty.
    • 5 Year power train component warranty.
    • Codes : UL1778, UL924, NFPA 101, NFPA 70, NEC and OSHA.
    • Cities of Chicago and New York Approved.
    • Complies with the Buy American Act.
    • VRLA and Lithium Ion Battery Solutions available. Ask your consultant about large Lithium Ion 15 Year Battery solutions.

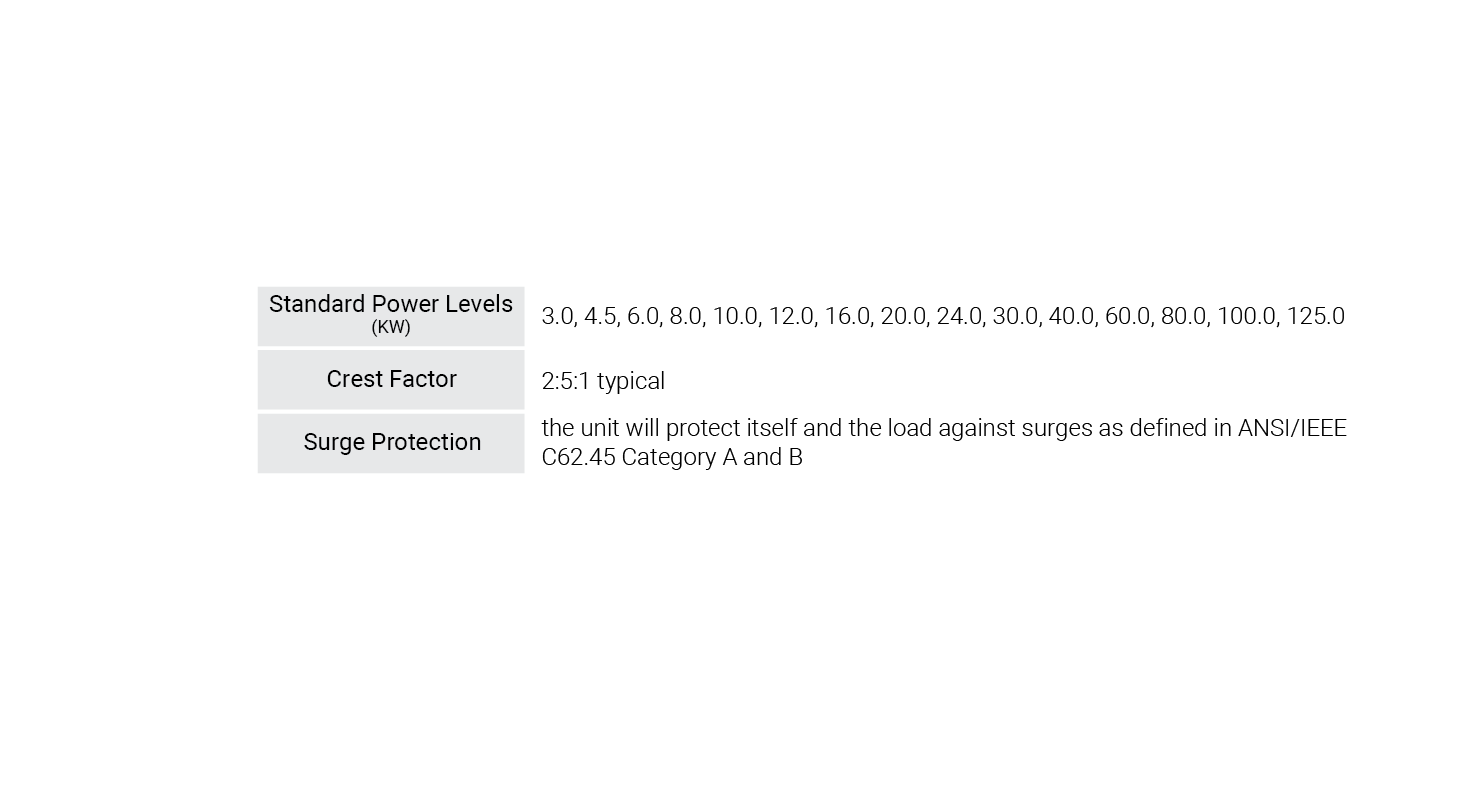

    Product Snapshot
    Standard Power Levels (KW)3.0, 4.5, 6.0, 8.0, 10.0, 12.0, 16.0, 20.0, 24.0, 30.0, 40.0, 60.0, 80.0, 100.0, 125.0
    Crest Factor2:5:1 typical
    Surge Protectionthe unit will protect itself and the load against surges as defined in ANSI/IEEE C62.45 Category A and B

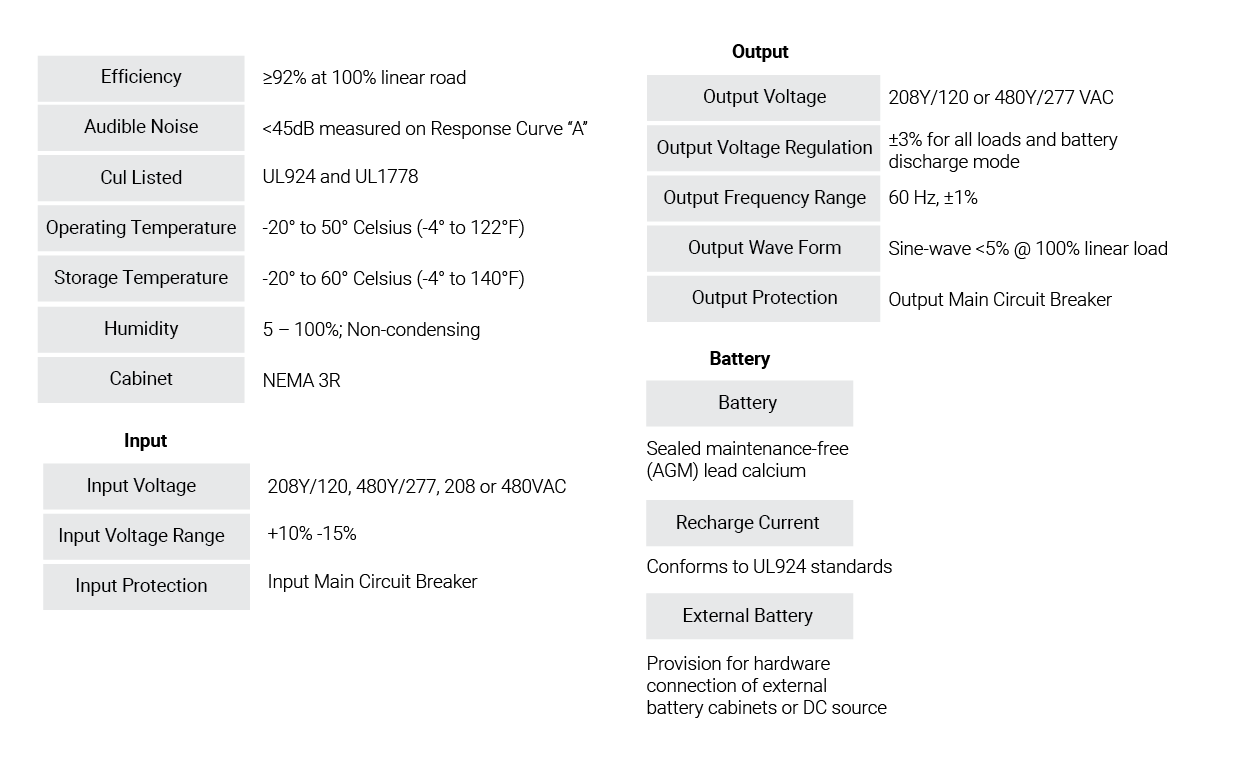

    Technical Specs
    Efficiency≥92% at 100% linear road
    Audible Noise<45dB measured on Response Curve “A”
    Cul ListedUL924 and UL1778
    Operating Temperature-20° to 50° Celsius (-4° to 122°F)
    Storage Temperature-20° to 60° Celsius (-4° to 140°F)
    Humidity5 – 100%; Non-condensing
    CabinetNEMA 3R


    Input Voltage208Y/120, 480Y/277, 208 or 480VAC
    Input Voltage Range+10% -15%
    Input ProtectionInput Main Circuit Breaker


    Output Voltage208Y/120 or 480Y/277 VAC
    Output Voltage Regulation±3% for all loads and battery discharge mode
    Output Frequency Range60 Hz, ±1%
    Output Wave FormSine-wave <5% @ 100% linear load
    Output ProtectionOutput Main Circuit Breaker


    BatterySealed maintenance-free (AGM) lead calcium
    Recharge CurrentConforms to UL924 standards
    External BatteryProvision for hardware connection of external battery
    cabinets or DC source
    Eternalight 3 Outdoor Cabinet Conduit DrawingEternalight 3 Outdoor Cabinet Conduit Drawing.pdf
    Eternalight 3 Outdoor Cabinet Placement DrawingEternalight 3 Outdoor Cabinet Placement Drawing.pdf
    Eternalight 3 Outdoor Integration Drawing 3-10kWEternalight 3 Outdoor Integration Drawing 3-10kW.pdf
    Eternalight 3 Outdoor Integration Drawing 12-30kWEternalight 3 Outdoor Integration Drawing 12-30kW.pdf
    Eternalight 3 Integration Drawing 40-125kWEternalight 3 Integration Drawing 40-125kW.pdf
    Eternalight 3 System Current RatingsEternalight 3 System Current Ratings.pdf
    Eternalight 3 Outdoor Lighting Inverter BrochureEternalight 3 Outdoor Lighting Inverter Brochure.pdf
    DSPM Eternalight 3 Outdoor Data SheetDSPM Eternalight 3 Outdoor Data Sheet.pdf
    DSPM Inc Eternalight 3 Outdoor Technical SpecificationsDSPM Inc Eternalight 3 Outdoor Technical Specifications.pdf
    Eternalight 3 Outdoor 208V Maintenance ManualEternalight 3 Outdoor 208V Maintenance Manual.pdf
    Eternalight 3 Outdoor 208V User’s ManualEternalight 3 Outdoor 208V User’s Manual.pdf
    Eternalight 3 480V Maintenance ManualEternalight 3 480V Maintenance Manual.pdf
    Eternalight 3 480V User’s ManualEternalight 3 480V User’s Manual.pdf
