Uninterruptible emergency lighting inverter system 1.5KVA –16.7KVA

FTC “Fast Transfer System”   Provides less than 50 ms transfer for HID lighting applications, LED, incandescent, and fluorescent lighting, and lower transfer time for more critical loads.


  • 98% efficient at full load
  • PWM/IGBT technology
  • Self-testing/Self-diagnostic
  • User programmable with password protection
  • Standard input circuit breaker
  • Standard normally off and on output
  • RS232 communication port
  • Micro-processor controlled
  • Automatic event and alarm log
  • 90 min. standard run time
  • Generator compatibility
  • Electronic and magnetic ballast compatible
  • Custom voltages available
  • Automatic event, test and alarm log
  • LCD display
  • Reduced footprint (stackable cabinets
  • Maintenance free standard batteries
  • Forced air cooling during emergency mode only

NFPA70, NFPA 110, OSHA, UBC, SBCCI. N.Y City approved.

Contact Us about ABB – FTC “Fast Transfer System” 1.5kVA – 16.7kVA


    Using IGBT/PWM technology the inverter converts the DC voltage supplied by the batteries to AC voltage of a precise stabilized amplitude and frequency, suitable for most sophisticated electrical equipment. True sinusoidal output waveform with very low distortion (less than 3% for linear loads). Overload capability of up to 150% for 12 line cycles.


    Fully automatic, temperature compensated, microprocessor controlled charger recharges fully discharged batteries in maximum 24 hours at nominal AC input voltage. AC input current limiting and over-voltage protection included.


    System is provided standard with 10 year, maintenance free, sealed valve regulated, front terminals Lead Calcium batteries. 20 year sealed Lead Calcium battery also available. 90 min. standard discharge time at full load under normal operating temperature. Low Voltage Disconnect protection included. No special ventilation required.


    Automatic self tests consist of a 5-minute monthly and 90-minute annual function. The front-mounted control panel includes 5 LED indicators, a 2-line 20-character LCD display, and a keypad to control and monitor the internal operation of the system. This control panel allows the operator to easily “watch” system functions as they occur and check on virtually any aspect of the system’s operation. Standard RS232 diagnostic interface.


    High/low battery charger voltage, high/low AC input voltage, near Low battery, low battery, load reduction fault, output overload, high ambient temperature, inverter fault, output fault, optional output circuit breaker trip

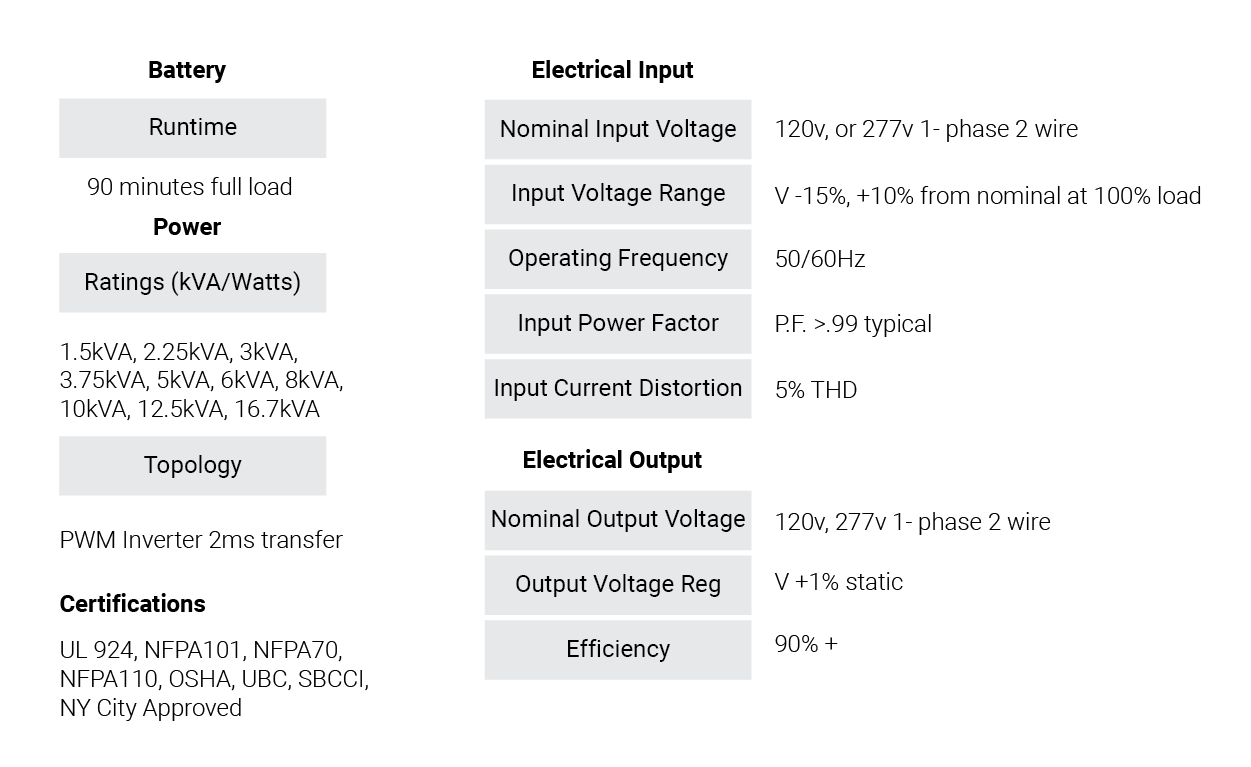

    Product Snapshot


    Ratings (kVA/Watts)1.5kVA, 2.25kVA, 3kVA, 3.75kVA, 5kVA, 6kVA, 8kVA, 10kVA, 12.5kVA, 16.7kVA
    TopologyPWM Inverter 2ms transfer

    Electrical Input

    Nominal Input Voltage120v, or 277v 1- phase 2 wire
    Input Voltage RangeV -15%, +10% from nominal at 100% load
    Operating Frequency50/60Hz
    Input Power FactorP.F. >.99 typical
    Input Current Distortion5% THD

    Electrical Output

    Nominal Output Voltage:120v, or 277v 1- phase 2 wire
    Output Voltage RegV +1% static
    Efficiency90% +


    Runtime90 minutes full load


    UL 924, NFPA101, NFPA70, NFPA110, OSHA, UBC, SBCCI, NY City Approved

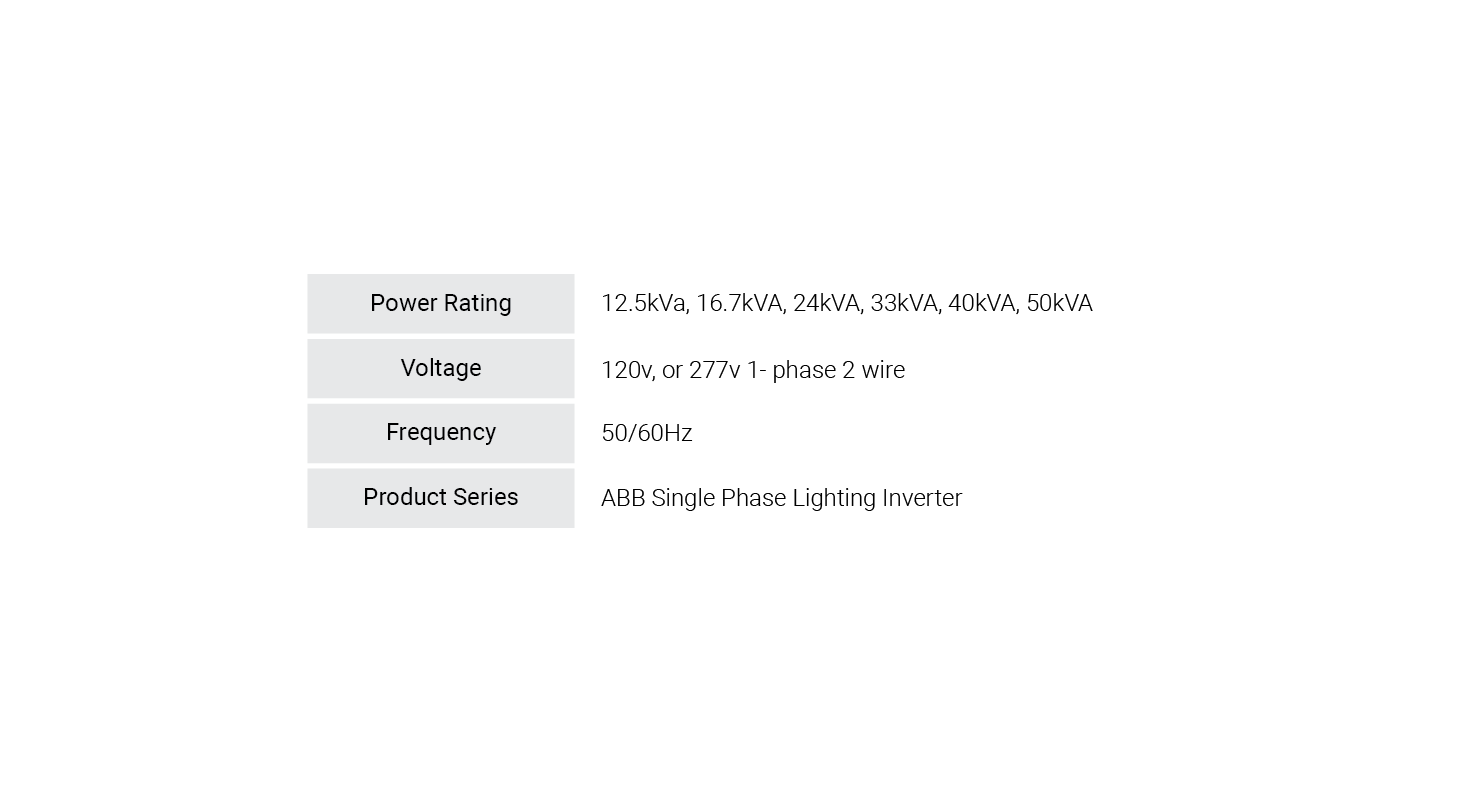

    Technical Specs
    Power Rating12.5kVa, 16.7kVA, 24kVA, 33kVA, 40kVA, 50kVA
    Voltage 120v, or 277v 1- phase 2 wire
    Product SeriesABB Single Phase Lighting Inverter
    Emerg-Power Systems FTC Single Phase SeriesEmerg-Power Systems FTC Single Phase Series.pdf
