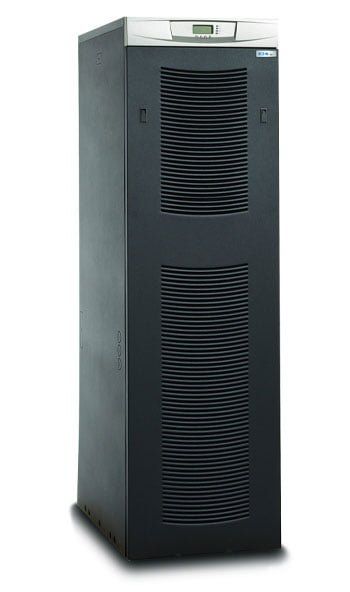

EATON 9355 UPS

Formerly Powerware 9355 UPS

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

Eaton-9355-UPS-Brochure.pdf

Eaton-9355-UPS-20-30kVA-User-Guide-2.pdf

Eaton-9355-UPS-10-15kVA-User-Guide-2.pdf

Features & Benefits

  • Delivers a complete solution in a sleek tower design that includes internal batteries and an integrated power distribution module.
  • Offers industry-leading power density with up to a 75 percent smaller footprint and 13 percent more power capacity than comparable UPSs.
  • Provides more real power in less space with high 0.9 output power factor.
  • Extends battery service life with ABM technology that uses an innovative three-stage battery charging system.
  • Enables paralleling of up to four 9355 UPSs for additional capacity and redundancy with Hot Sync technology.
  • Offers scalability with 10 kVA models that can be upgraded with an additional 10 kVA of capacity.

Contact Us about Eaton 9355 UPS

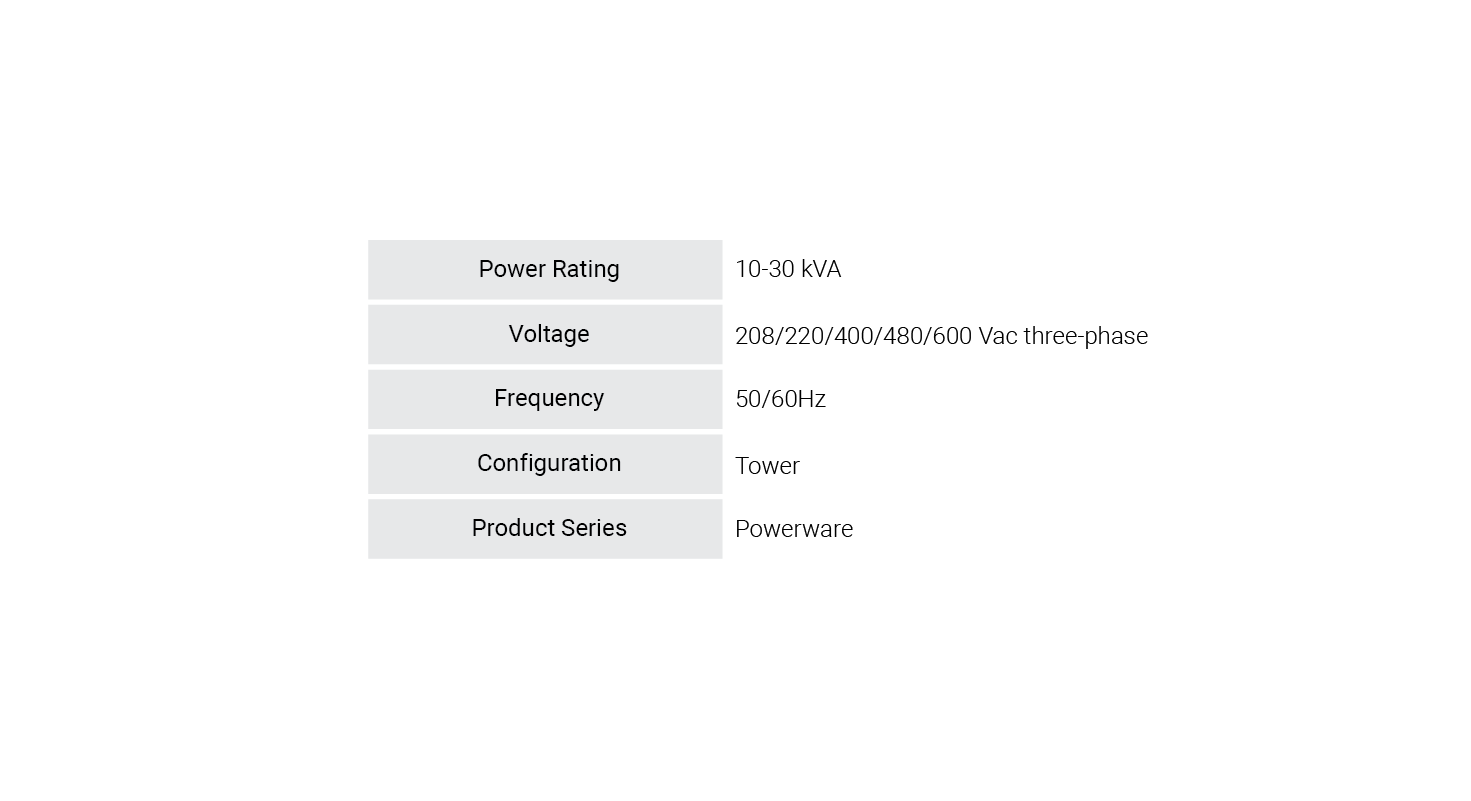

    Product Snapshot
    Power Rating10-30 kVA
    Voltage 208/220/400/480/600 Vac three-phase
    Frequency50/60Hz
    ConfigurationTower
    Product SeriesPowerware

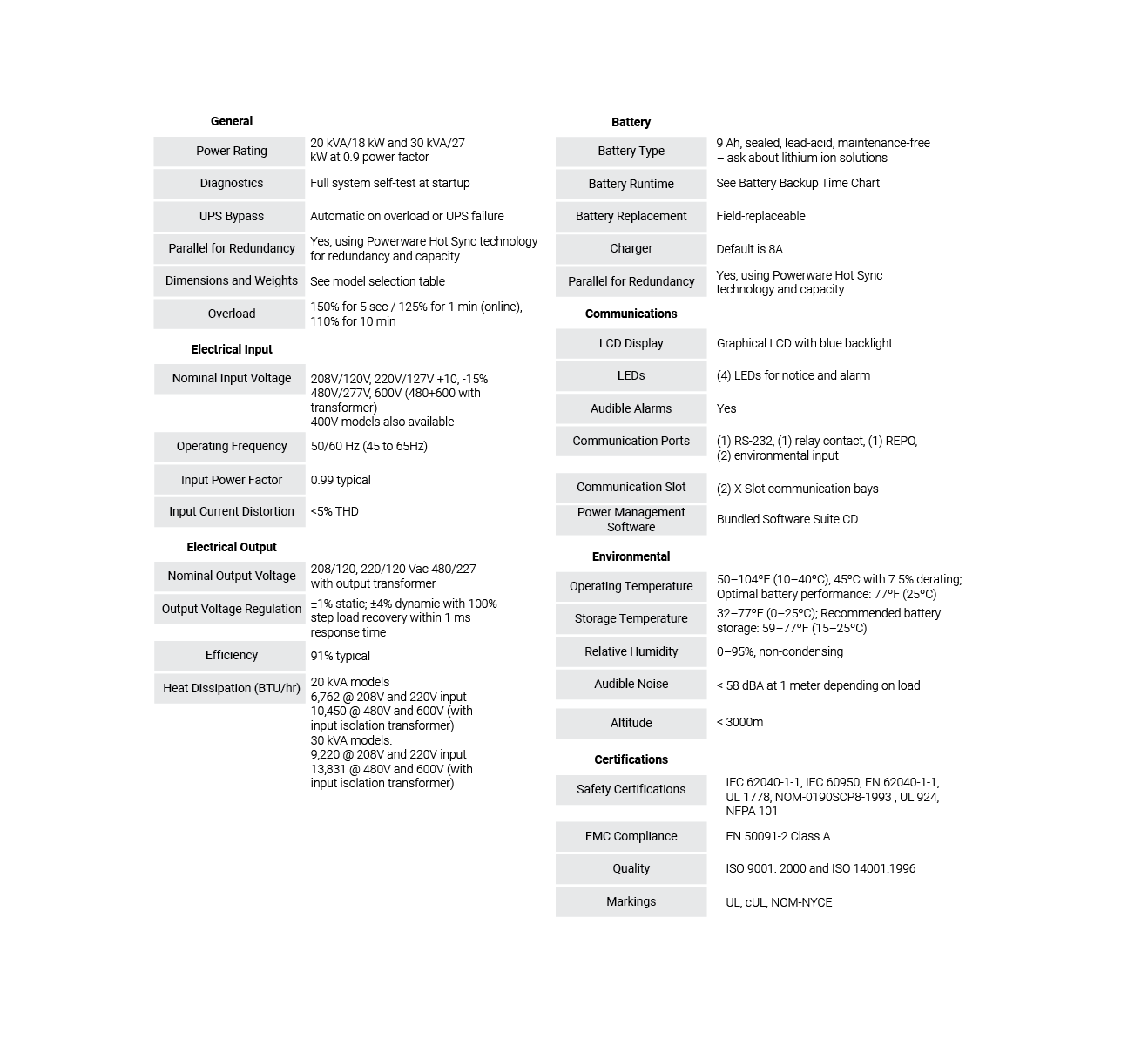

    Technical Specs

    General:

    Power Rating20 kVA/18 kW and 30 kVA/27 kW at 0.9 power factor
    DiagnosticsFull system self-test at startup
    UPS BypassAutomatic on overload or UPS failure
    Parallel for RedundancyYes, using Powerware Hot Sync technology for redundancy and capacity
    Dimensions and Weights See model selection table
    Overload150% for 5 sec / 125% for 1 min (online), 110% for 10 min

    Electrical Input:

    Nominal Input Voltage208V/120V, 220V/127V +10, -15%
    480V/277V, 600V (480+600 with transformer)
    400V models also available
    Operating Frequency 50/60 Hz (45 to 65Hz)
    Input Power Factor 0.99 typical
    Input Current Distortion <5% THD

    Electrical Output:

    Nominal Output Voltage 208/120, 220/120 Vac
    480/227 with output transformer
    Output Voltage Regulation ±1% static; ±4% dynamic with 100% step load recovery within 1 ms response time
    Efficiency 91% typical
    Heat Dissipation (BTU/hr)20 kVA models
    6,762 @ 208V and 220V input
    10,450 @ 480V and 600V (with input isolation transformer)
    30 kVA models:
    9,220 @ 208V and 220V input
    13,831 @ 480V and 600V (with input isolation transformer)

    Battery:

    Battery Type 9 Ah, sealed, lead-acid, maintenance-free
    Battery Runtime See Battery Backup Time Chart
    Battery Replacement Field-replaceable
    Charger Default is 8A
    Parallel for Redundancy Yes, using Powerware Hot Sync technology and capacity

    Communications:

    LCD Display Graphical LCD with blue backlight
    LEDs(4) LEDs for notice and alarm
    Audible alarms Yes
    Communication Ports(1) RS-232, (1) relay contact, (1) REPO,
    (2) environmental input
    Communication Slot(2) X-Slot communication bays
    Power Management SoftwareBundled Software Suite CD

    Environmental:

    Operating Temperature50–104ºF (10–40ºC), 45ºC with 7.5% derating;
    Optimal battery performance: 77ºF (25ºC)
    Storage Temperature32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC)
    Relative Humidity0–95%, non-condensing
    Audible Noise< 58 dBA at 1 meter depending on load
    Altitude<3000m

    Certifications:

    Safety CertificationsIEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
    EMC ComplianceEN 50091-2 Class A
    QualityISO 9001: 2000 and ISO 14001:1996
    MarkingsUL, cUL, NOM-NYCE

    1. Due to continuous product improvements, program specifications are subject to change without notice.
